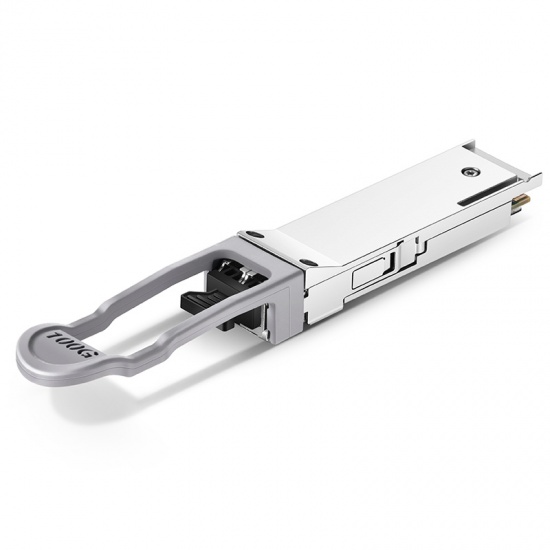

Compatible Juniper QSFP28 100GBase SR4 100m MMF Optical Transceiver

Brand Name : Juniper

Model Number : JNP-QSFP28-100G-SR4

Certification : CE

MOQ : 20

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000pcs/months

Packaging Details : anti-static plastic bag

Product Name : Compatible Juniper QSFP28 100GBase-SR4 100m MMF Optical Transceiver

Part Number : JNP-QSFP-100G-SR4

Connector : Duplex LC

Transceiver Type : QSFP28

Distance : 70m

Maximum Power consumption (W) : 5W

Operating Temperature : 0° C to 70° C

Storage temperature : –40° C to 85° C

Fiber grade : OM3

Receiver sensitivity : +3.5 dBm

Stressed receiver sensitivity : -3.0 dBm

Contact Now

Compatible Juniper QSFP28 100GBase-SR4 100m MMF Optical Transceiver

QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF

Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4)IEEE 802.3bm
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)840 nm through 860 nm
Transmitter output power, each lane (minimum)–8.4 dBm
Transmitter output power, each lane (maximum)2.4 dBm
Receiver input power, each lane (minimum)–10.3 dBm
Receiver input power, each lane (maximum)2.4 dBm
Cable typeMMFCore size/cladding50/125 µm
Fiber gradeOM3OM4
Effective modal bandwidth2000 MHz x km4700 MHz x km
Distance70 m100 m
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
