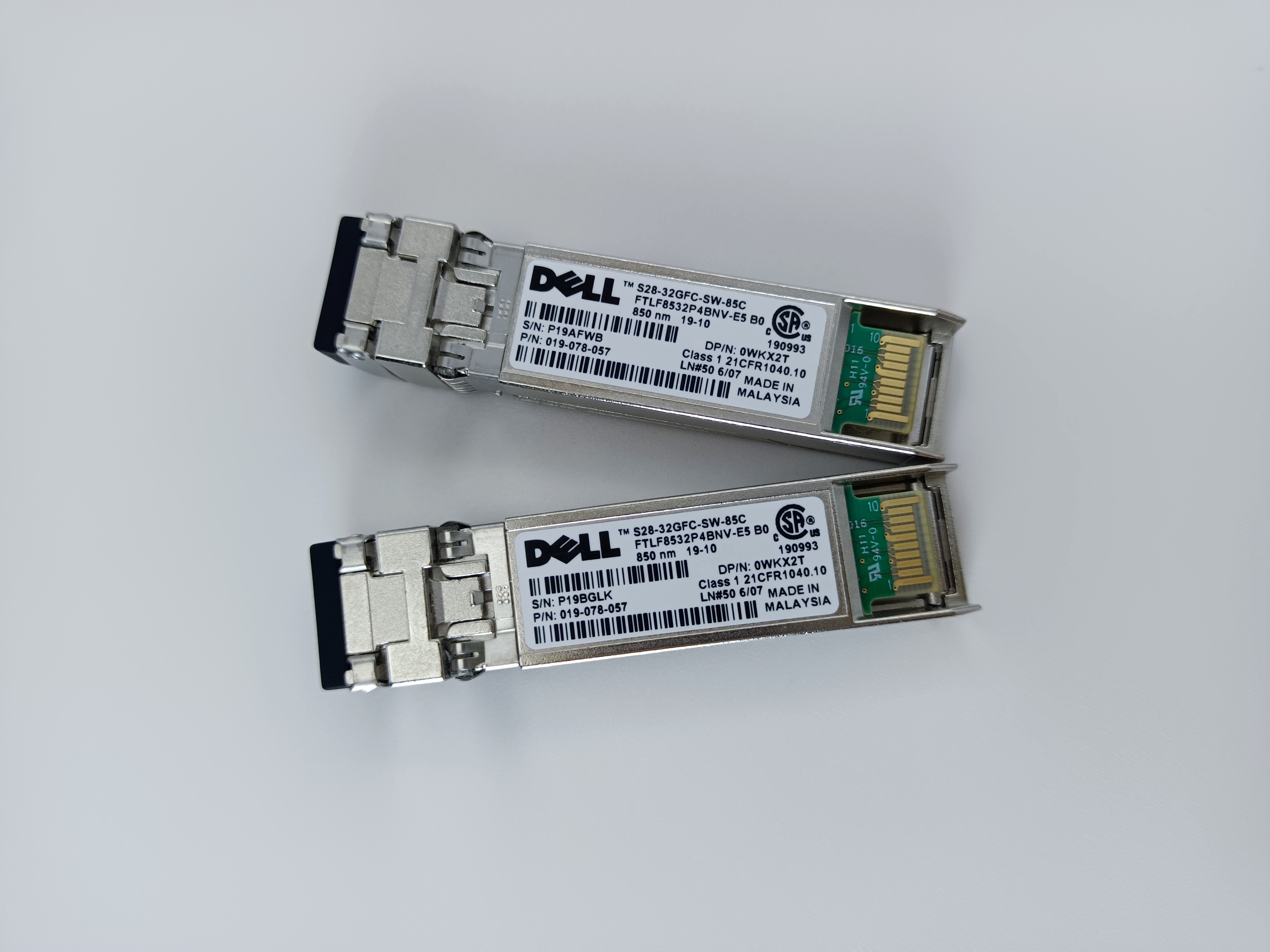

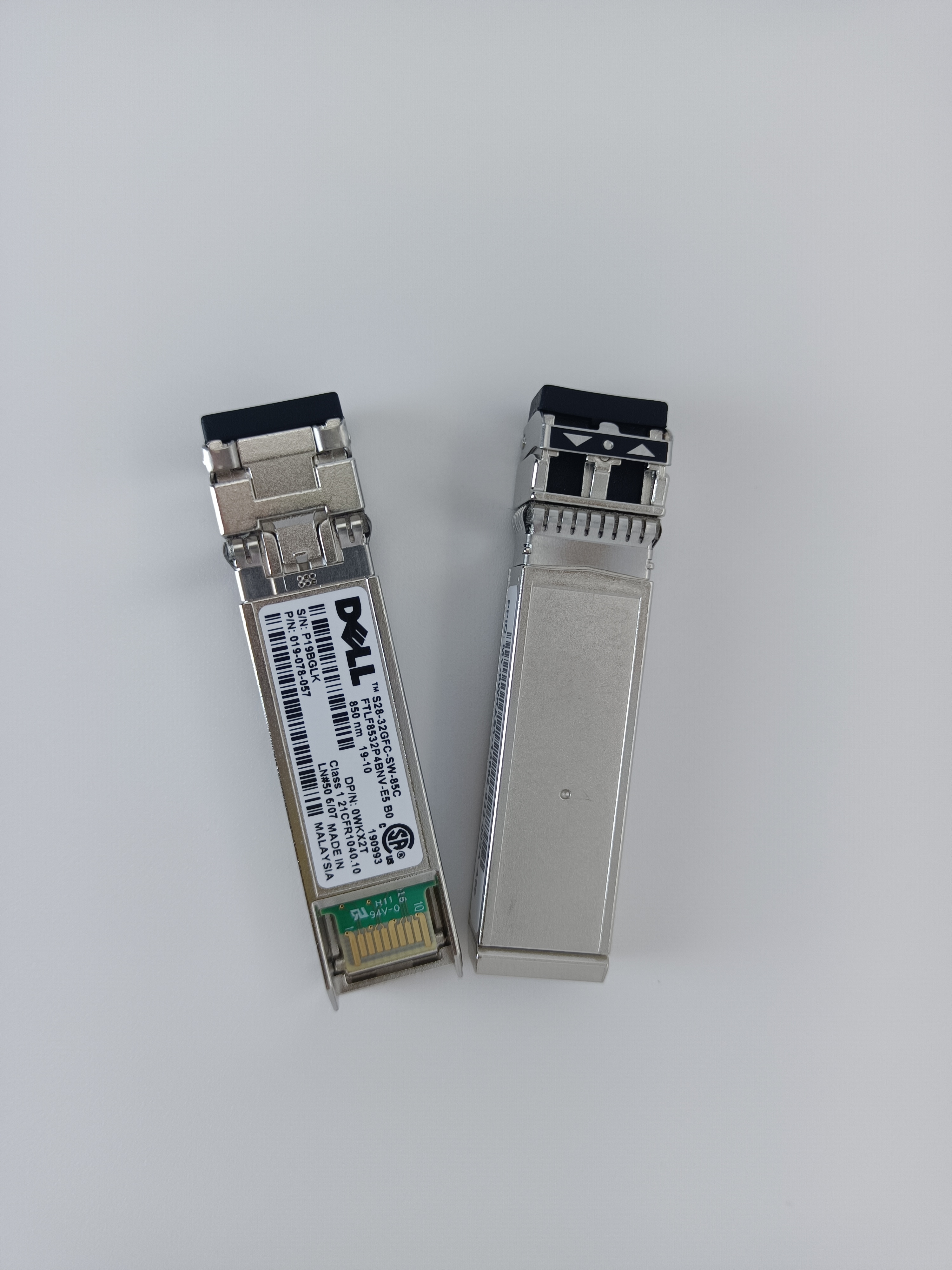

Dell 32G Compliant Short Wavelength SFP+ Module Transceiver FTLF8532P4BNV-E5
FTLF8532P4BNV-E5 SFP+ Module Features
- Up to 28.05 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Built-in digital diagnostic functions
- 850nm Oxide VCSEL laser transmitter
- 100m over M5F MMF (50/125 um OM4)
- 70m over M5E MMF (50/125um OM3)
- Metal enclosure, for lower EMI
- Operating temperature range: 0°C to 85°C
FTLF8532P4BNV-E5
| Fiber Type | Single mode |
| Connector | Duplex LC |
| Lasers | VCSEL |
| Tx power | -9.0 to +2.0 dBm |
| Rx sensitivity | -12.0 to +2.0 dBm |
| Extinction Ratio | 3.5dB |
| Power Consumption | 1.3W |
| Single Power Supply | 3.3V |
The Description of FTLF8532P4BNV-E5
Finisar’s FTLF8532P4BNV-E5 SFP+ transceivers are designed for use in Fibre Channel links up to 28.05 Gb/s data rate over multimode fiber.
They are compliant with FC-PI-6a, SFF-8472 Rev 12.2c, and compatible with SFF-8432b and applicable portions of SFF8431 Rev. 4.1d.
The transceiver is RoHS compliant and per Directive 2011/65/EUe . See Finisar Application Note AN-2038 for more details.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2. What will you do if I found the product has any quality problem?
A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.
Q5. What is your payment terms?
A5. T/T, Western union, Paypal.
