Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module
FTLX8573D3BTL Optical Module Fetures:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Industrial temperature range -40°C to 85°C
Single 3.3Vpower supply
Maximum link length of 400m on 4700 MHZ-km OM4 MMF
Heated 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
APPLICATIONS
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel
850nm 400m Fiber Module Specification
| Fiber Type | MMF |
| Conector | LC |
| Temperature | -40°C to 85°C |
| Distance | 400m |
| Rate | 10G |
| wavelength | 850 nm |
| Application | 10GBASE-SR/SW 10G Ethernet |
| Optical Extinction Ratio | 5.5 dB |
| Power dissipation | < 1W |
Finisar’s FTLX8573D3BTL Industrial Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet
links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3ae 10GBASE-SR/SW3 and 10G
Fibre Channel 1200-Mx-SN-I4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-
84725 . The FTLX8573D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC
PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a
limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar
Application Note AN-2038 for more details.
Why choose Topstar?
1. Topstar has been in the Optical Transceiver Module industry for more than 11 years.
2. We are currently supplying more than 20,000 pieces to more than 100 regular and new customers domestic and international monthly.
3. We are one of the biggest Optical Transceiver Module distributors for original brands like , Finisar and Brocade in China.
4. Stable channel and abundant resources ensures us consistently provide our customers quality products and competitive price.
5. Professional sales team provides you with excellent buying experience, and answers all your questions through out this process.
We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted
services !
|
|

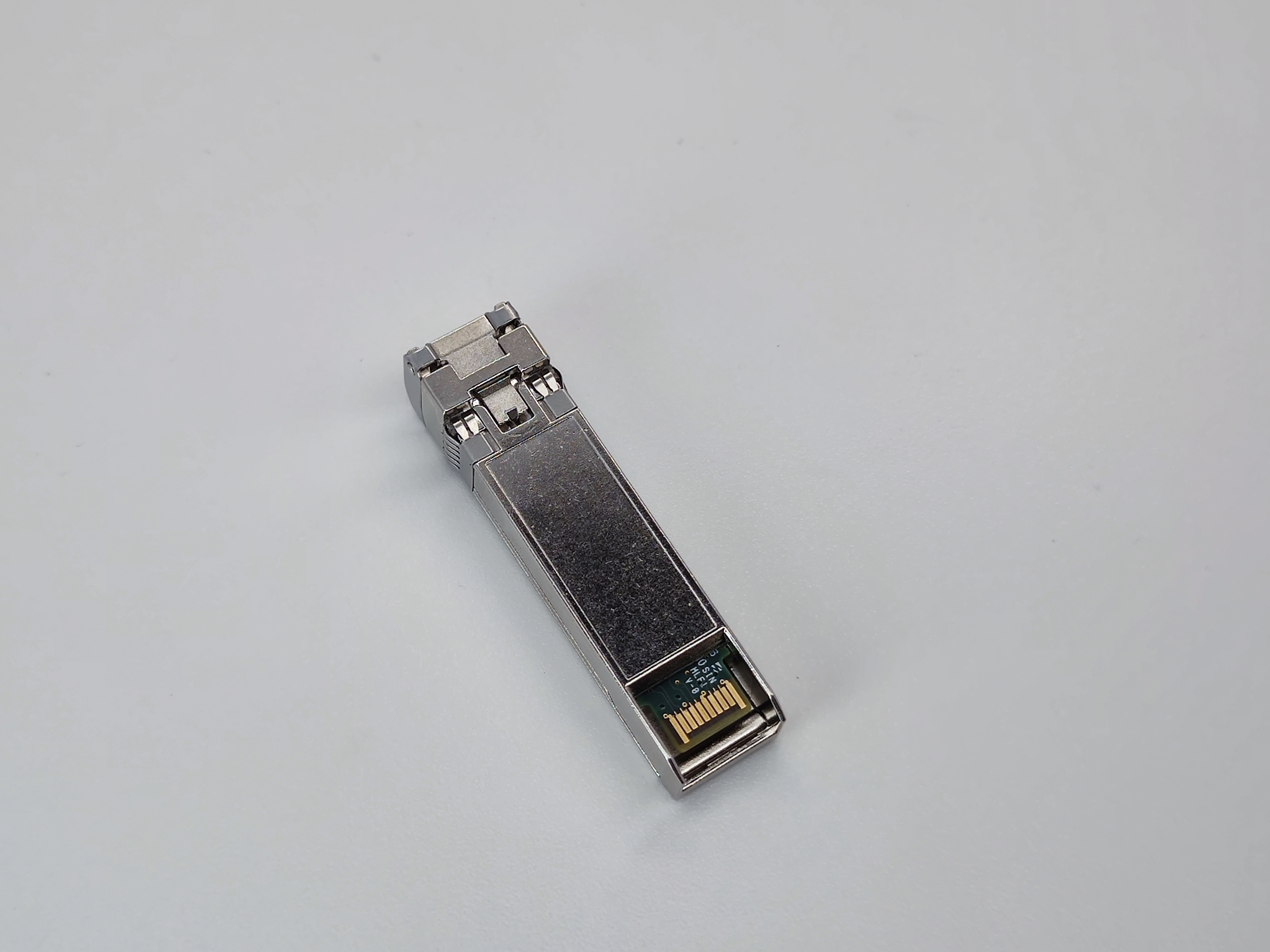

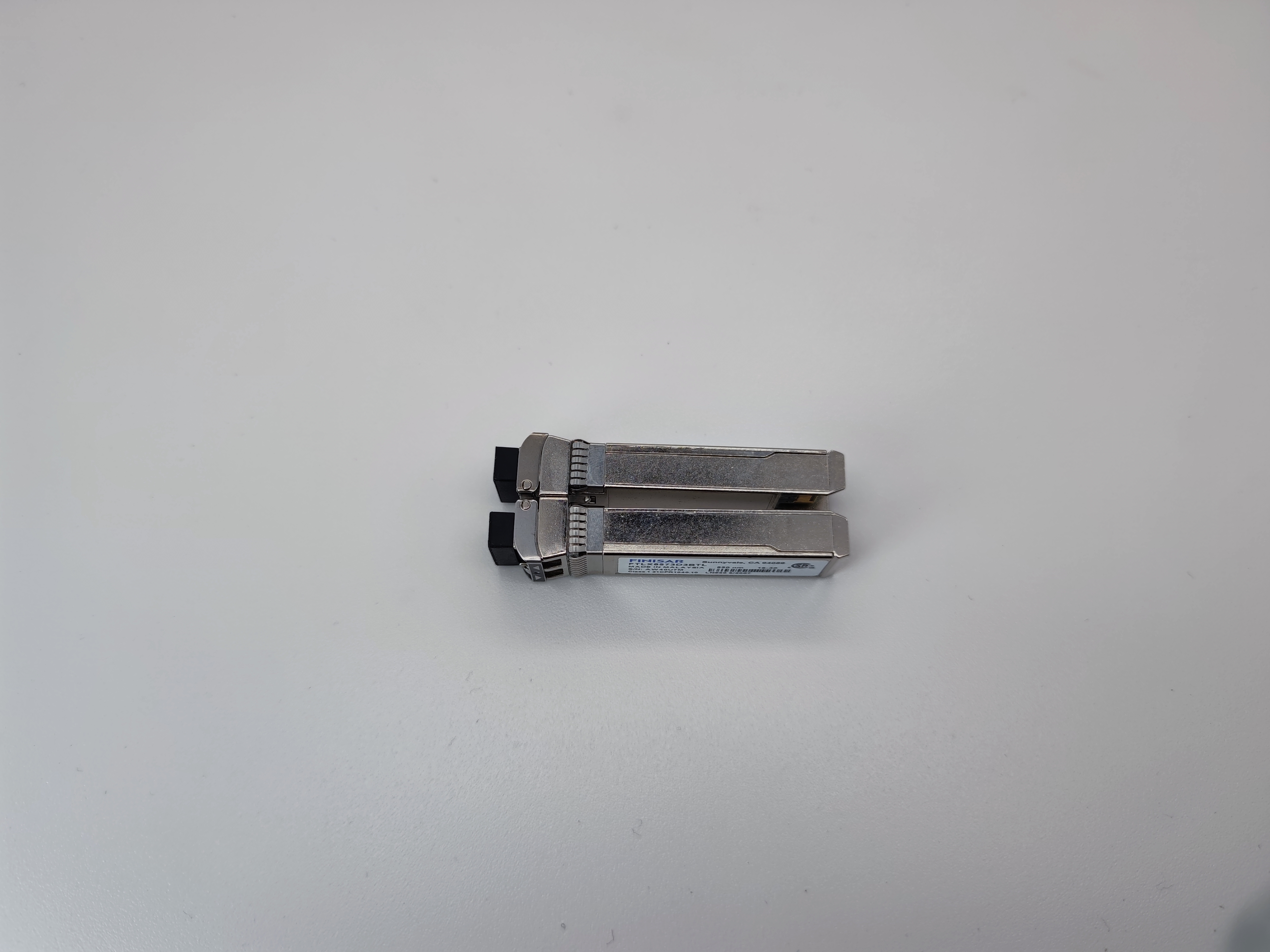

Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module Images
|
